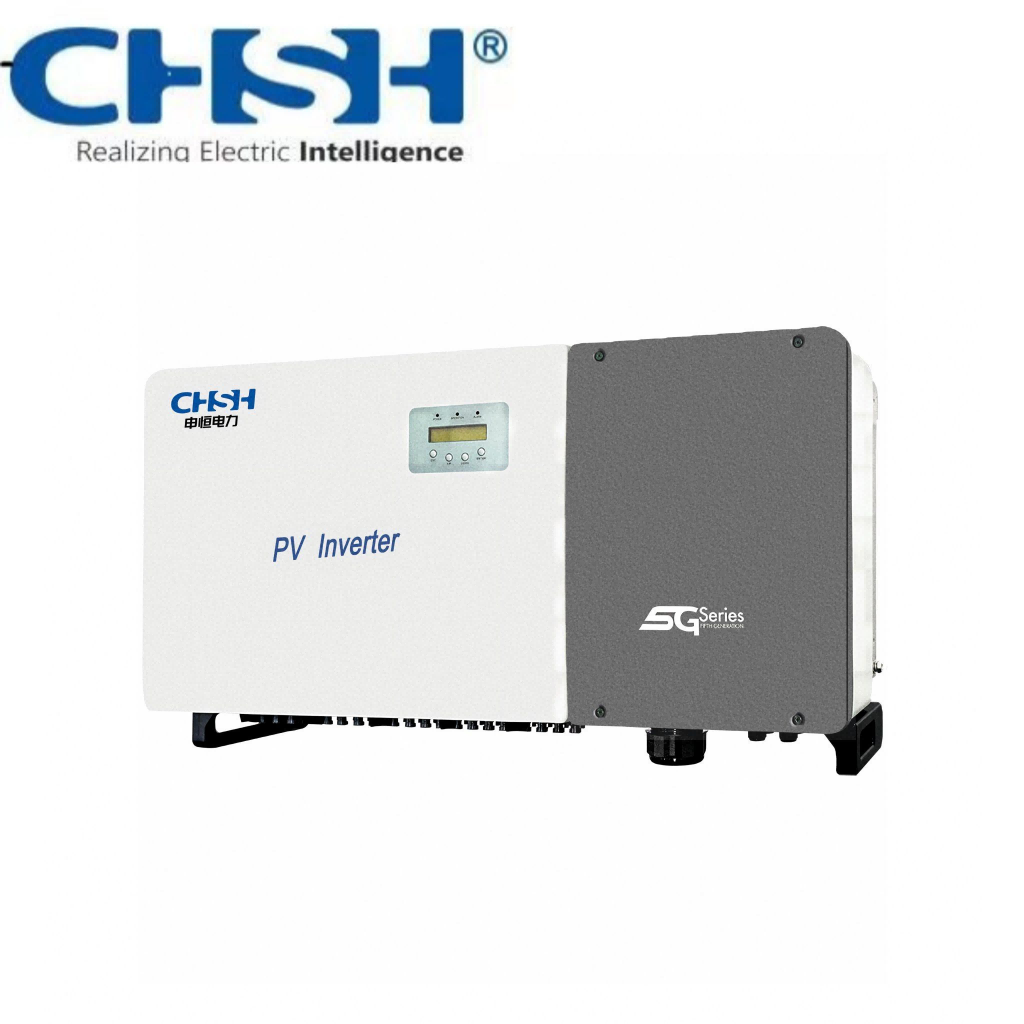

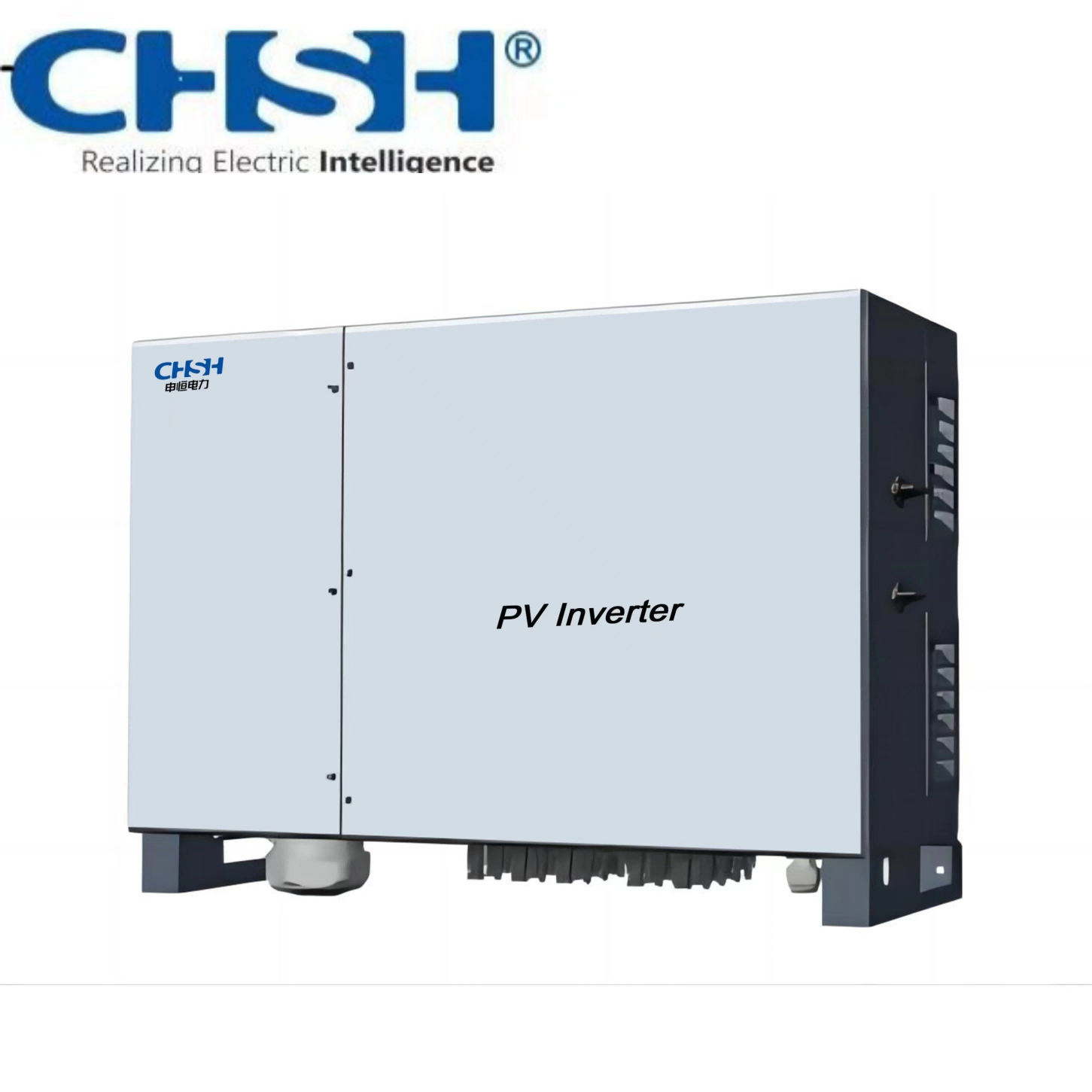

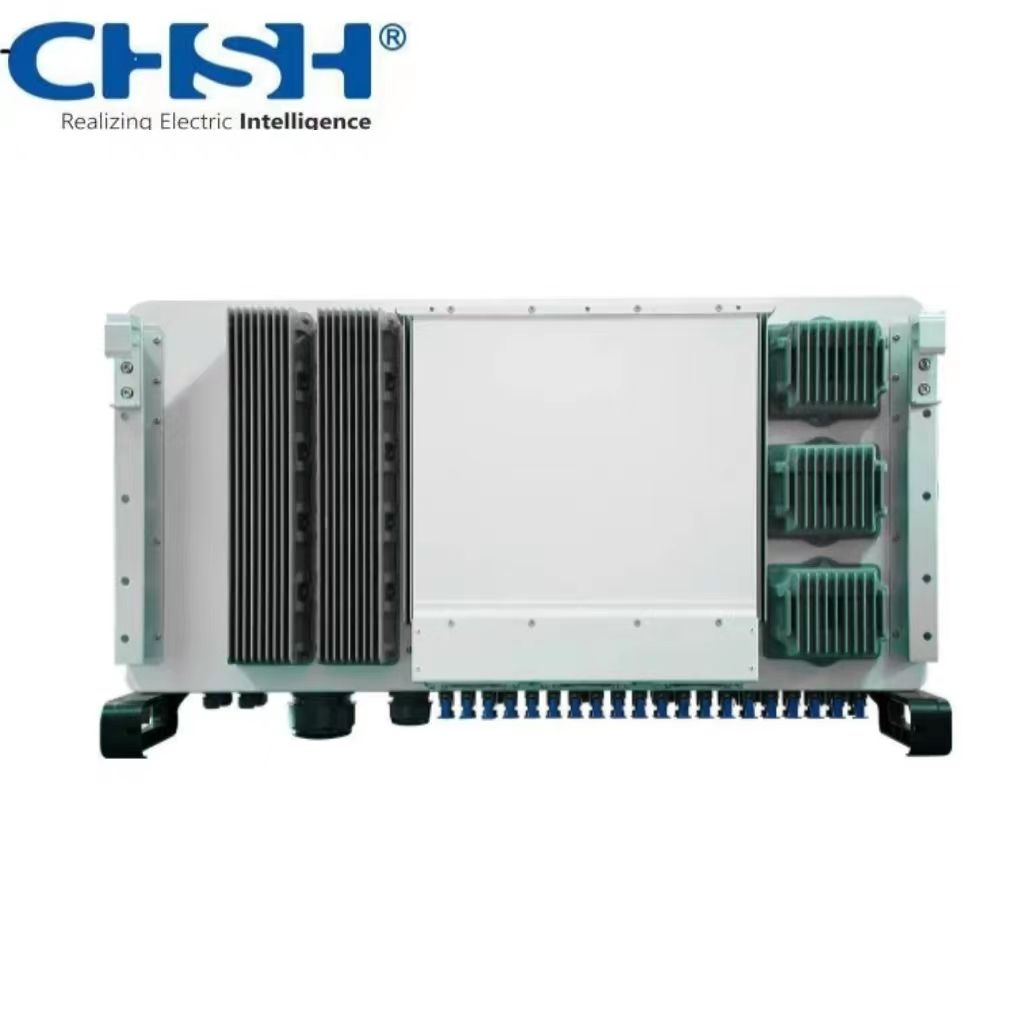

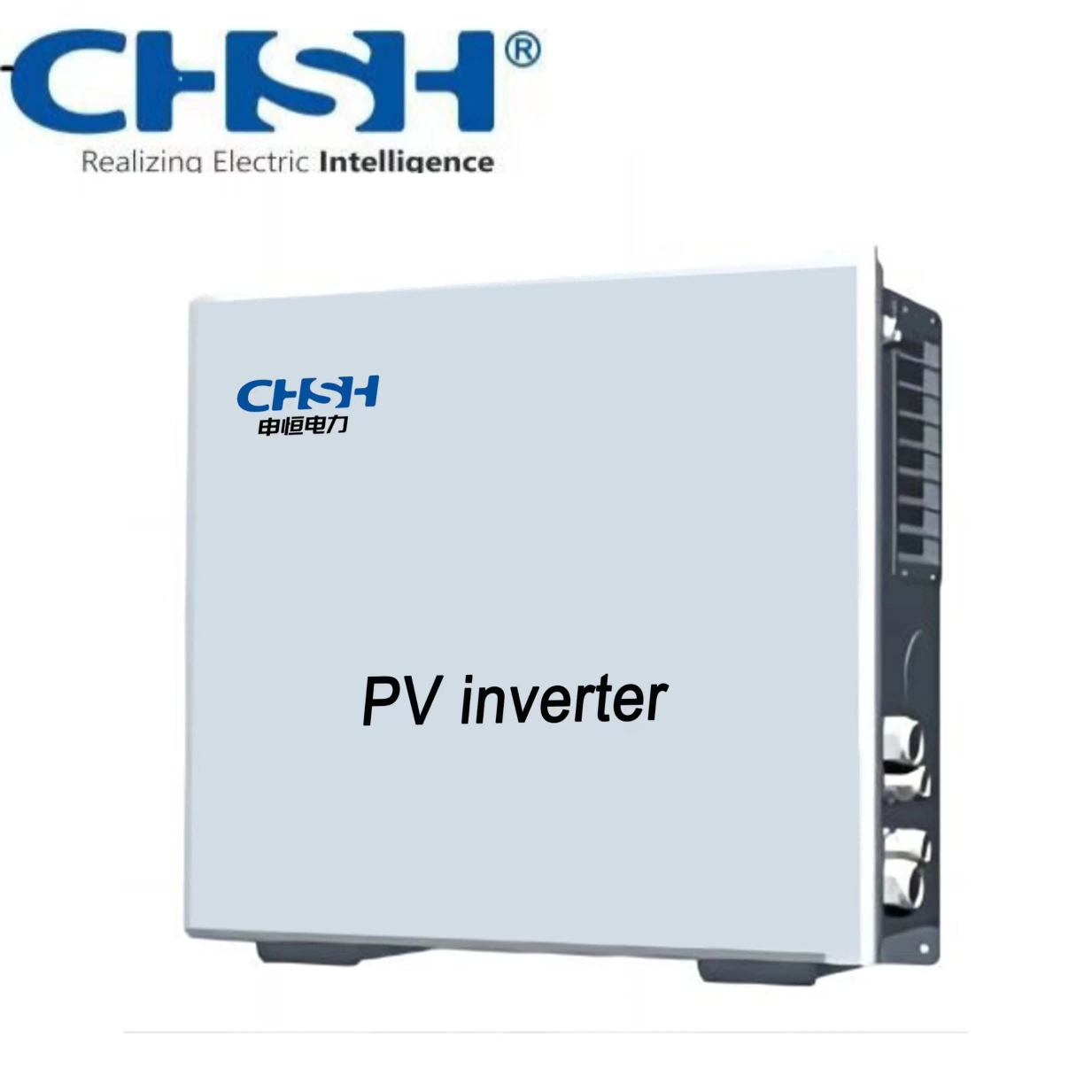

Solar on Grid Inverter Technology 3 Phase Solar PV Inverter

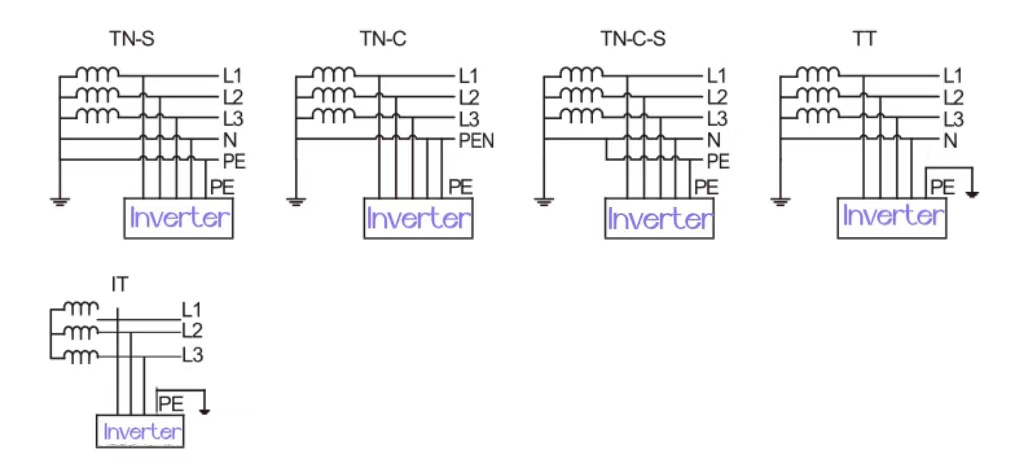

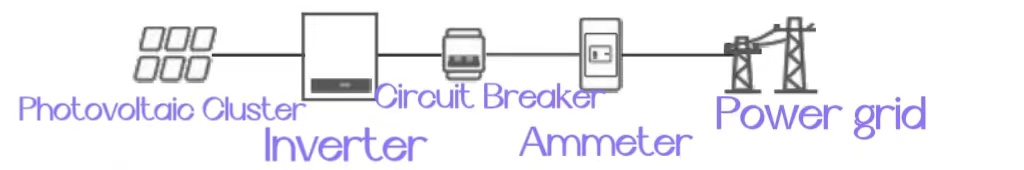

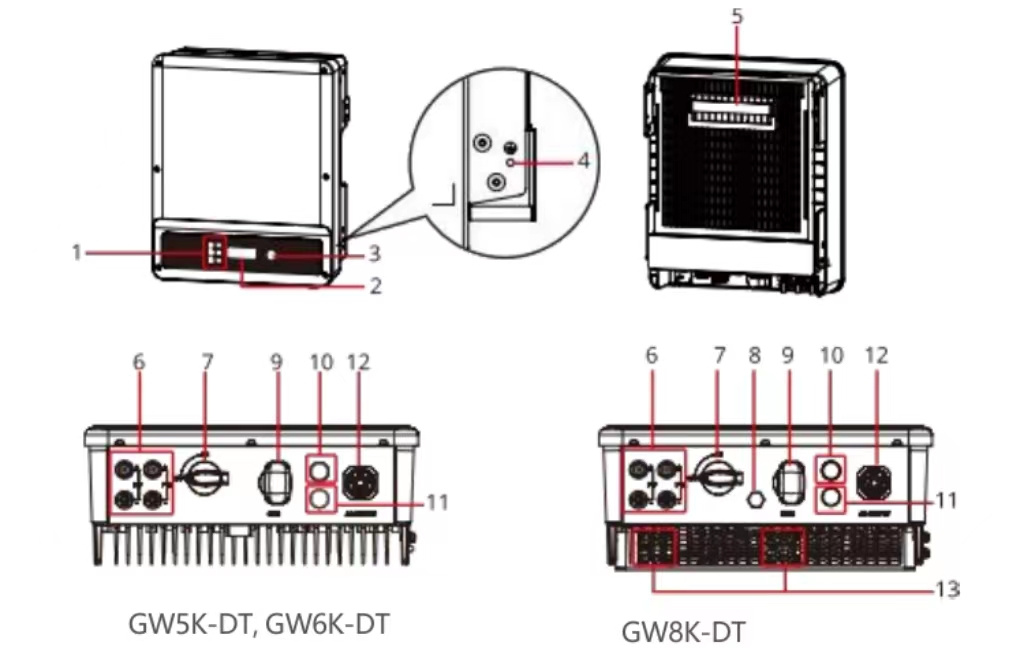

Series inverter has the following fixed characteristics: high protection grade, protection grade is IP65, can be directly installed in the outdoor; The DC input is the MC4 waterproof terminal dedicated to photovoltaic, which can be directly connectedto the panel without going through the DC busbar; Wide output voltage range, output AC phase voltage is mostly between180-280V,can be directly connected to the local single-phase or three-phase power grid; The number of MPPT channels is usually 2or 3. MPPT has more fine control, high efficiency and flexible design, which can adapt to different application scenarios such asground power station, mountain, floor and other environmental requirements.
