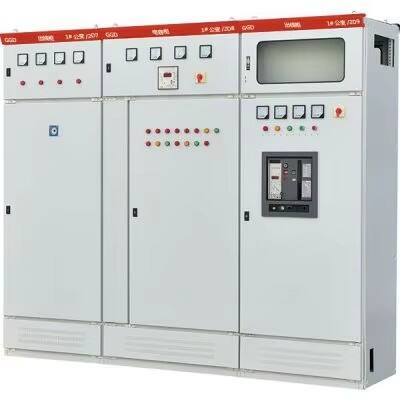

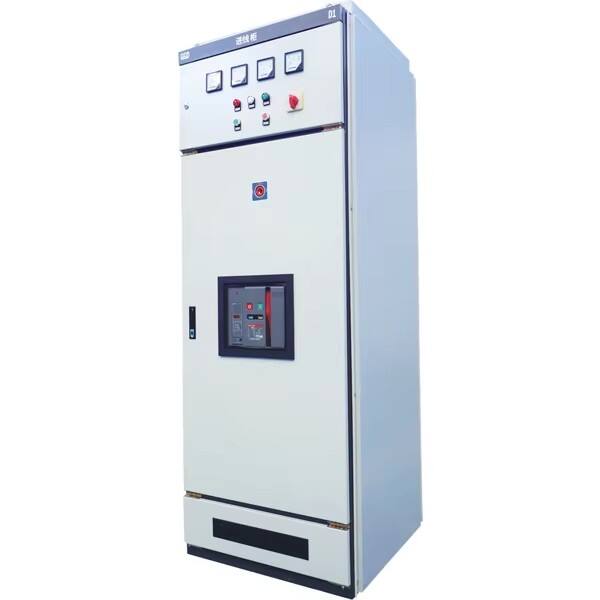

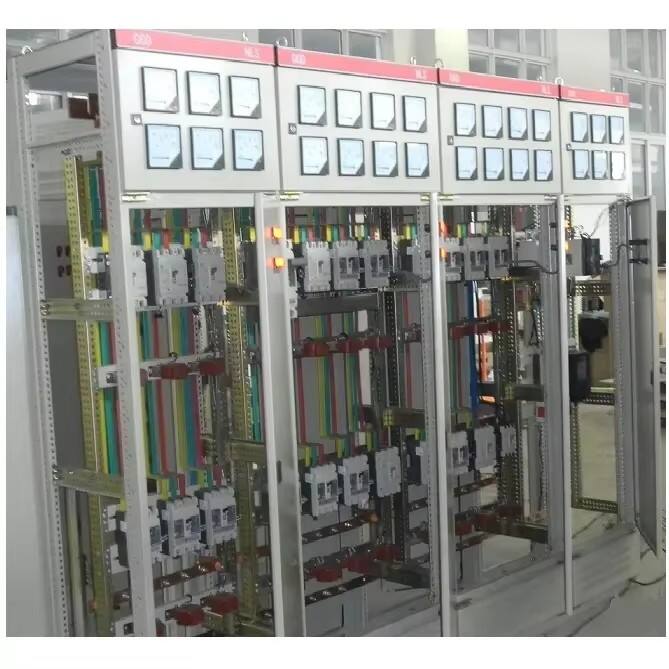

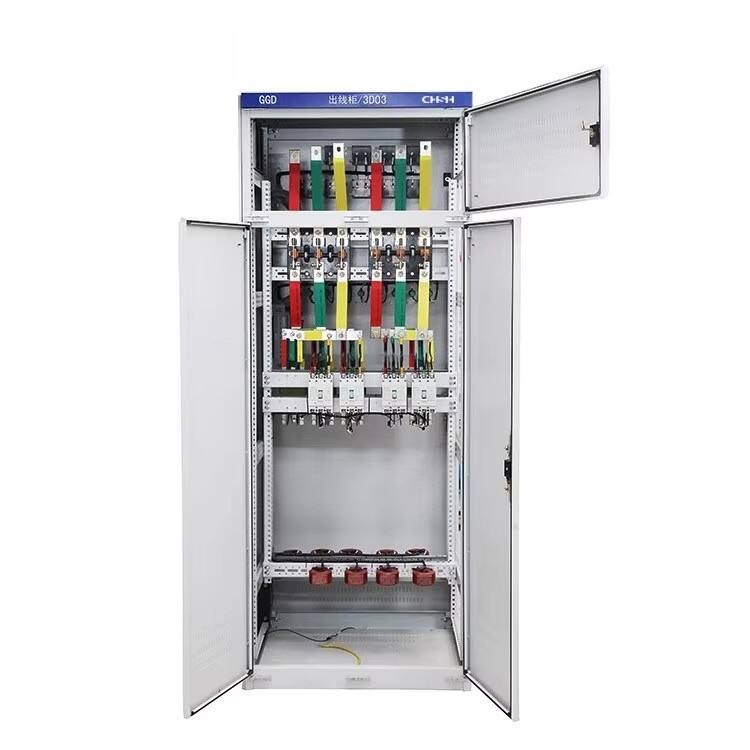

GGD Indoor fixed type Low Voltage Switchgear
The GGD AC low voltage distribution cabinet is applied to certain distribution system of AC 50/60Hz,rated voltage 400V, rated current being 3150A or lower.
mainly used for power transforming, distributing and controling of power equipment, lighting and distribution equipment.
high breaking capacity, well dynamic, thermal stability, flexible electric plant, simple combination, strong series performance and printability, novel structure, high protection rank etc.
It conforms with technique demand of IEC60439.1 and GB7251.1 low-volt complete set switch equipment etc.
- Overview
- Recommended Products
Products Description
The cabinet frame is welded by 8 MF cold bending steel, ensure quality of the cabinet body
There are 20 mold installation holes, the general coefficient is high
There are different number of heat emission holes at the upper and lower ends of the cabinet. the sealed cabinet body forms a natural ventilation channel from the bottom up to achieve the purpose of heat dissipation.
The cabinet door is connected with the cabinet frame by hinges, without adjustment and easy installation.The cabinet surface adopts electrostatic spraying, strong adhesion and good texture.
